Re: New boat project CCSF25.5 - build thread

Post by DAYTRIP on Tue Nov 10, 2015 8:23 pm

That this will be a total beast. Will take a lot to get through that hull.

DAYTRIP

Posts : 130
Join date : 2015-04-14

View user profile

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Wed Nov 11, 2015 6:38 pm

a couple more hours today. The last little strips filling in and around where the strakes end take some time to shape. Got the first side strip on so that I can start running the strips for the chine.  The chine strips run out over-top the sides, so the first side strip is used to trim the chine strips.  The chine strips are douglas fir.  The douglas fir is harder than WRC and I want extra compression strength on the chine.

Looks like Im going to run out of strip before I run out of boat Very Happy Will need to order at least a couple more boards.



avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by DAYTRIP on Wed Nov 11, 2015 8:06 pm

Very cool. Working like you planned? Any opportunities for improvement identified yet. Basketball

DAYTRIP

Posts : 130
Join date : 2015-04-14

View user profile

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Carolina flare on Fri Nov 13, 2015 6:13 am

Moving right along. Will you hit that with a long board before glass?.
BTW no Wahoo 1 dolphin
avatar
Carolina flare

Posts : 14
Join date : 2015-04-14

View user profile

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Sun Nov 15, 2015 11:15 am

Carolina flare wrote:Moving right along. Will you hit that with a long board before glass?.
BTW no Wahoo 1 dolphin

Yeah, will use a plane and fairing board to smooth it all out before fiberglass.
avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Sun Nov 15, 2015 5:43 pm

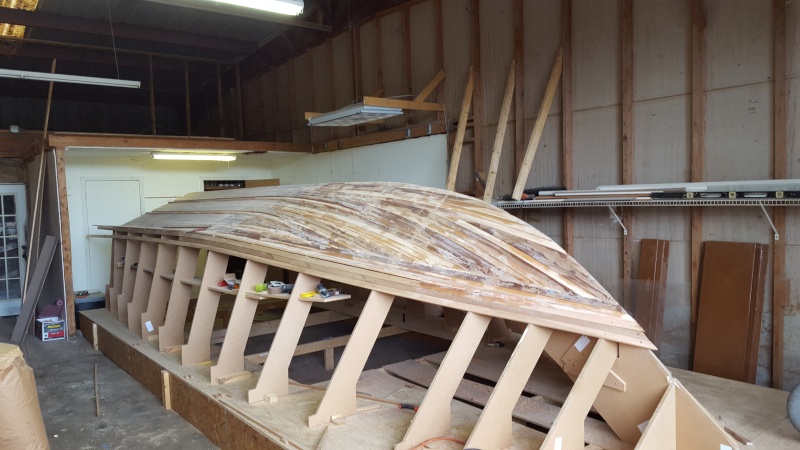

Running douglas fir strips on the chine and closing up the gaps at the bow.
avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Fri Nov 20, 2015 7:45 am

https://goo.gl/photos/hh1x4zshaQMZmeac7

Bottom is just about stripped, didn't have much time to put into this project this week.

https://goo.gl/photos/RuPdD7AU7GPsjhHj9


Last edited by Admin - Shine on Sat Nov 21, 2015 10:02 am; edited 1 time in total
avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by bigtalljv on Fri Nov 20, 2015 11:24 am

not sure if it's just me but I can't see the latest photos. (and I really want to!)

jason

bigtalljv

Posts : 4
Join date : 2015-11-20

View user profile

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Carolina flare on Sat Nov 21, 2015 9:55 am

No pictures here.
Standing by
avatar
Carolina flare

Posts : 14
Join date : 2015-04-14

View user profile

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Mon Nov 23, 2015 8:37 am

Was out of town and the darn google image would not cut and paste like i wanted. Anyway, here are a few pictures. I have a couple days of cool weather, going to try and get the bottom finished this week,






avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by DAYTRIP on Tue Nov 24, 2015 8:06 am

Looks good Joel. Little fill and fair in your future

DAYTRIP

Posts : 130
Join date : 2015-04-14

View user profile

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Tue Nov 24, 2015 9:03 am

DAYTRIP wrote:Looks good Joel. Little fill and fair in your future

Oh yeah, just a little Very Happy
avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Wed Nov 25, 2015 5:05 pm

took a planer to the chines.  Just a few more little strips on each side and I can start fairing the bottom.

It would be interesting to build one of these in foam core. Even though its a lot more expensive, it can be planked and shaped a lot quicker.





avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by DAYTRIP on Wed Nov 25, 2015 6:39 pm

Looks great Joel. That thing has to be stiff as heck

DAYTRIP

Posts : 130
Join date : 2015-04-14

View user profile

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Mon Nov 30, 2015 12:26 pm

Got the bottom closed up, the last few strips were not very hard at all to shape, they just took time.

Shaped the keel and chine a little more, then gave it a sanding.  Next is to fair it all out before glassing.





before shaping the keel



after shaping

avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by DAYTRIP on Mon Nov 30, 2015 1:19 pm

That looks great. That is a sharp entry! Should cut a slice out of a wave nicely.

DAYTRIP

Posts : 130
Join date : 2015-04-14

View user profile

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Carolina flare on Mon Nov 30, 2015 3:40 pm

I can't see any pictures. Are you just teasing me?
avatar
Carolina flare

Posts : 14
Join date : 2015-04-14

View user profile

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Mon Nov 30, 2015 5:30 pm

Carolina flare wrote:I can't see any pictures. Are you just teasing me?

Its crazy to me that the Google Image tags work for some and not for others, and sometimes they work or don't for the same people! Very frustrating,

This is a direct link to the gallery https://goo.gl/photos/kwAze69X3vPwESLu7
avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Tue Dec 01, 2015 8:57 am

Hosted a new way.....

Last picture shows a first past of fairing to fill lows. I will do a little more of this filling before glassing.









avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Tue Dec 08, 2015 9:16 am

chine just about complete.

avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Tue Dec 15, 2015 12:55 pm

bottom is just about where I want it, now to strip the sides.

So far I have used about 1.5 gallon of epoxy to fill the strip gaps, not too bad.





avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by lawtoolguy on Tue Dec 15, 2015 1:35 pm

Looks awesome Joel. Can't wait for the glass!

lawtoolguy

Posts : 27
Join date : 2015-04-14

View user profile

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Tue Dec 15, 2015 6:28 pm

lawtoolguy wrote:Looks awesome Joel. Can't wait for the glass!

Me too. Ran out of cedar strips, need a few more boards.

avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by Admin - Shine on Sun Jan 10, 2016 2:58 pm

last week I got the second batch of strips are cut, hullsides getting stripped now. Sides go on a lot quicker than the bottom




avatar
Admin - Shine
Admin

Posts : 456
Join date : 2015-03-31

View user profile http://gulfstreamcomposites.forumotion.com

Back to top Go down

Re: New boat project CCSF25.5 - build thread

Post by DAYTRIP on Sun Jan 10, 2016 9:03 pm

Looking Good Joel. Not long now! What was the thought with not bringing the lower strake all the way to the bow?

DAYTRIP

Posts : 130
Join date : 2015-04-14

View user profile

Back to top Go down
