Post by Admin - Shine Wed Jan 13, 2016 1:37 pm

Building a coffin box for a customer.  Using a temporary/rough mold to make both outside and the inside liner.

Here is a link to the google gallery which will be updated with a lot more pictures....

All the materials used in this project are sold through our store...... gulfstreamcomposites.com

https://goo.gl/photos/Yh86i9b7s4t74ezG6

Coffin box build 20160113

Coffin box build 20160114

Coffin box build 20160115


Last edited by Admin - Shine on Sat Feb 06, 2016 10:00 am; edited 1 time in total
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Mon Jan 18, 2016 10:02 am

first layer of glass in the mold, one more layer to go, the the inside liner gets built and dropped in

Coffin box build 20160118

Coffin box build 20160119

Used PVA as the mold release on the molds. PVA is sold here.... link to PVA


Last edited by Admin - Shine on Sat Feb 06, 2016 9:59 am; edited 1 time in total
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Thu Jan 21, 2016 11:55 am

male mold for liner, glassed, then core material glued up.  Then laid it in the female mold with epoxy putty.

The epoxy being used is Raka epoxy....

http://www.gulfstreamcomposites.com/category-s/129.htm

Using a combination of 1708 and 10 oz woven for the glass skins....

link to 1708

link to 10 oz woven cloth

Coffin box build 20160120

Coffin box build 20160121

Coffin box build 20160122

Coffin box build 20160123


Last edited by Admin - Shine on Sat Feb 06, 2016 9:58 am; edited 2 times in total
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Thu Jan 28, 2016 9:32 am

progress on the coffin box build.  After epoxy gluing in the liner (with the core material in place) the space is filled with expanding foam.  Molds pulled apart, and the box trimmed to shape.  Next the bottom of the box get glassed in, then fairing and finishing

a lot more pictures here

https://goo.gl/photos/Yh86i9b7s4t74ezG6

Coffin box build 20160124

Coffin box build 20160125
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Wed Feb 03, 2016 8:18 pm

started fairing, very happy with the overall fairness.  The lid and the lip of the box were both covered with a couple layers of glass.

Coffin box build 20160130

this is actually the bottom of the box....

Coffin box build 20160210

Coffin box build 20160211


Last edited by Admin - Shine on Wed Feb 03, 2016 8:33 pm; edited 1 time in total
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Wed Feb 03, 2016 8:32 pm

I forgot to show how I made the bottom....  started with glass on a flat surface, epoxied down the core, made a drain recess, glassed the topside.  The glass on the mold surface is like a flange to glue down onto the box, excess epoxy squeezes out (clean it up while its wet Smile).  Trim the outside flush.  I used the grinder to make a grove in the foam all the way around the box on both the inside and outside skin/joint, so that when the bottom was pressed down it makes a nice inside fillet of epoxy putty to ensure a good bond between the two parts.

fillet and glue putty is our fillet/glue blend....

http://www.gulfstreamcomposites.com/product-p/lhm_filletblend_8oz.htm

core material is plascore honeycomb, found here...

http://www.gulfstreamcomposites.com/category-s/137.htm

Coffin box build 20160131

Coffin box build 20160132

dry fit

Coffin box build 20160133

bottom of box glued down, you can see the putty through the glass (brown)

Coffin box build 20160134


Last edited by Admin - Shine on Sat Feb 06, 2016 9:55 am; edited 1 time in total
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by DAYTRIP Thu Feb 04, 2016 7:48 pm

That is slick. What did you do, cut the lid off the molded piece? Any issue with the foam deforming the outer or inner skins?

DAYTRIP

Posts : 133
Join date : 2015-04-14

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Thu Feb 04, 2016 8:02 pm

daytrip wrote:What did you do, cut the lid off the molded piece? Any issue with the foam deforming the outer or inner skins?

Yes, the top was molded into the bottom of the molds, and I just cut it off. The skins were braced pretty well, 3/4" malamine and MDF with 2x4 around the outside and 2x4 bracing on the inside liner, no deformation at all.

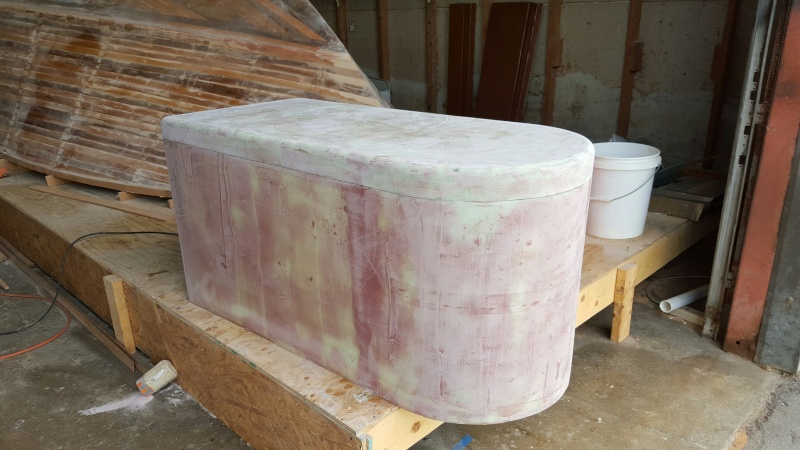

after sanding the first fairing pass

Coffin box build 20160212

Coffin box build 20160213

second fairing pass today, if I have time tomorrow I will hit it with primer to see where it stands.

Coffin box build 20160214

Coffin box build 20160215
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by DAYTRIP Fri Feb 05, 2016 6:21 am

Looks good. What are you going to do to seal the top to the box when closed?

DAYTRIP

Posts : 133
Join date : 2015-04-14

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Sat Feb 06, 2016 9:53 am

DAYTRIP wrote:Looks good. What are you going to do to seal the top to the box when closed?

A gasket on the lid, picked it up yesterday along with the hinges and drain plug.

rolled some prime on yesterday, using the EMC high build epoxy primer.....

http://www.gulfstreamcomposites.com/EMCprimers-s/126.htm

Coffin box build 20160216

Coffin box build 20160217

at least one more application of fairing, then several more coats of primer. Will be cutting hole for drain and holes for mounting bolts next.
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by DAYTRIP Sun Feb 07, 2016 8:58 am

Looks great. What are the dimensions ?

DAYTRIP

Posts : 133
Join date : 2015-04-14

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Sun Feb 07, 2016 3:24 pm

DAYTRIP wrote:Looks great. What are the dimensions ?

24 tall, 22"x48" it's the dimensions needed to fit on the front hatch of customers boat. It's a contender 27, not sure what year/model

Easy to build using 4x8 materials Very Happy
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Wed Feb 10, 2016 9:12 pm

more primer, more fairing.  PVC epoxied into the bottom for the mounting bolts.

Coffin box build 20160218

Coffin box build 20160219

Coffin box build 20160220

Coffin box build 20160221

Coffin box build 20160222

using the same hinges I used on the last coffin box, super heavy duty and rounded

Coffin box build 20160223

Using EMC highbuild primer, it sure fills and builds fast !

link to the primer: http://www.gulfstreamcomposites.com/EMCprimers-s/126.htm
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Thu Feb 11, 2016 9:16 pm

locating the hinges. Drilling holes to a little over 2x fastener diameter. I then use a screw locked into the drill chuck to route out the foam around the inside of the fiberglass skin. Last step is to pour the hole with epoxy. No way these hinges can pull loose Very Happy

Coffin box build 20160227

Coffin box build 20160228

Coffin box build 20160229

Coffin box build 20160230

Coffin box build 20160232
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Fri Feb 12, 2016 10:11 am

Admin - Shine wrote:locating the hinges.   Drilling holes to a little over 2x fastener diameter.  I then use a screw locked into the drill chuck to route out the foam around the inside of the fiberglass skin.  Last step is to pour the hole with epoxy.  No way these hinges can pull loose  Very Happy

Coffin box build 20160227

Coffin box build 20160228

Coffin box build 20160229

Coffin box build 20160230

Coffin box build 20160232
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Thu Feb 18, 2016 3:15 pm

Another coat of EMC highbuild primer, then today the first two coats of Matterhorn White on the inside of the box. Picture shows only the first coat. Second coat gave full coverage. The guide coat is just some spray paint, it lets you see where you need to sand and keeps you (hopefully) from sanding through. Actually, I did sand through in some spots on the inside, but the paint covered just fine. Paint is rolled on (no tipping) with a cigar style roller. I used no reducer and it laid out like glass.

Coffin box build 20160210

Coffin box build 20160211

Coffin box build 20160212

Coffin box build 20160213



Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Sat Feb 20, 2016 8:12 am

sanded outside of box to 220 grit.  Used my neighbors spray booth just to keep dust off, rolled a couple coats of EMC Quantum paint on in the booth.  Used about 1/2 quart so far and covered about 56 square feet with two coats.    I need to put a coat on the boattom of the box, and I may put another coat on the inside of the box, but besides that I think the painting is done.  The guy I am building this for wanted a non-skid pattern on the top, so that will happen next week after I install the hardware and gasket

Coffin box build 20160214

this picture was taken right after rolling the paint on, it is in the process of laying out.

Coffin box build 20160215

This is after about 1 hour, all tightened up and dry to the touch.

Coffin box build 20160216
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Cracker Larry Sun Feb 21, 2016 9:20 am

Very nice!

Cracker Larry

Posts : 45
Join date : 2015-04-18

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Mon Feb 22, 2016 8:09 pm

thanks Larry ! The customer I am building this for is a guide in Key West, so just to make sure it gets install correctly I think I will need to go on a fishing trip Wink

ready for hardware....

Coffin box build 20160220
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Sat Feb 27, 2016 3:13 pm

finished up. Hardware mounted and a non-skid (kiwigrip) pattern on the lid.

Coffin box build 20160230

Coffin box build 20160231

Coffin box build 20160232

Coffin box build 20160233

Coffin box build 20160234
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Sat Mar 05, 2016 1:19 pm

Delivered the coffin box last week to Key West. The color was a good match. Bolted the box to the forward hatch, then we went fishing Smile

Coffin box build 20160310

Coffin box build 20160311
Admin - Shine
Admin - Shine
Admin

Posts : 488
Join date : 2015-03-31

https://gulfstreamcomposites.forumotion.com

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Cracker Larry Mon Mar 07, 2016 8:06 am

Box looks great! Where's the fish? Laughing

Cracker Larry

Posts : 45
Join date : 2015-04-18

Back to top Go down

Coffin box build Empty Re: Coffin box build

Post by Admin - Shine Wed Mar 09, 2016 7:09 am

Cracker Larry wrote:Box looks great! Where's the fish? Laughing

Haha, well I guess the fishing can be slow sometimes no matter where you are. We only got one tuna and got sharked Mad
